Many probes on one screen

A wall instance watches other probes rather than a stream: it reads each one’s own probe-api and draws them together. It aggregates, it does not re-analyse — every reading on a tile is the reading that probe published.

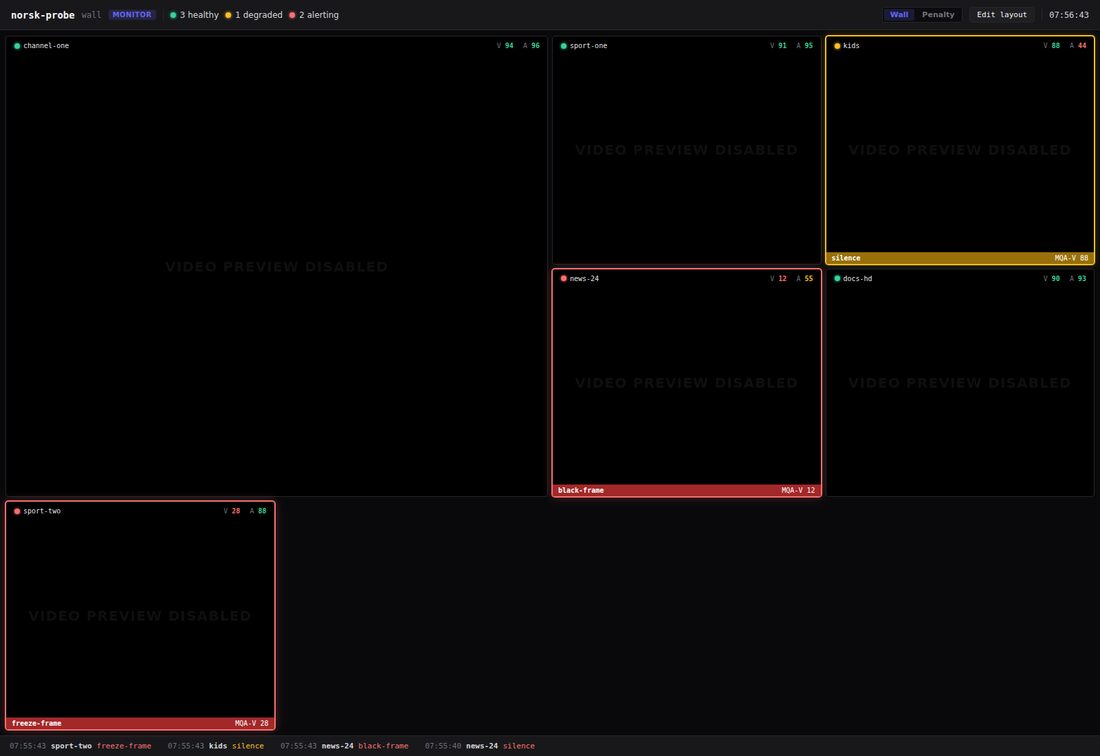

01 The monitor wall

Six probes, mixed health, in an authored layout so the channel that matters holds the big tile. The tiles carry no picture in these captures because they are made with no engine behind them; on a real wall each one plays that probe’s low-latency preview.

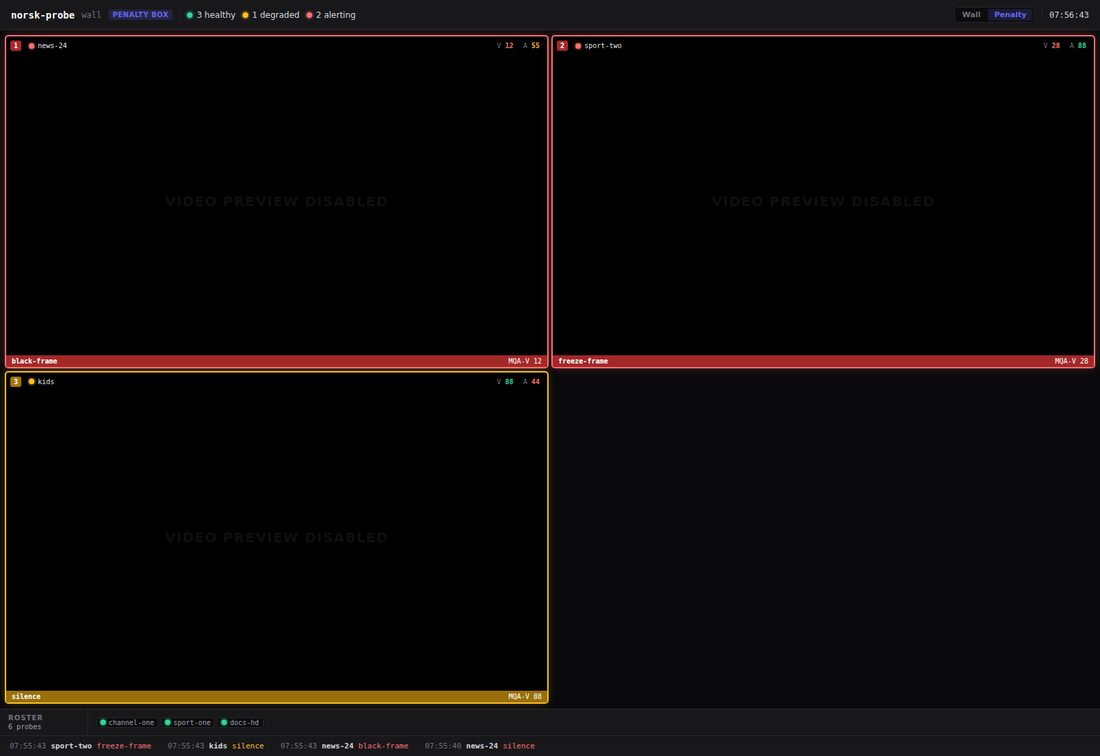

02 Or only the ones in trouble

The penalty box reads the same probes the other way round: healthy ones collapse to a roster along the bottom and only the failing ones take screen space, worst first. On a wall of forty channels that is the difference between a screen you scan and a screen you search.
