Zero to Hero (Hybrid Mode, CLI)

First installation

Section titled “First installation”

Initialise norsk-ctl

Section titled “Initialise norsk-ctl”

Run norsk-ctl init to create the configuration file. Hybrid mode puts studio on the Docker bridge (proxied) and media on the host network for low-latency ingest.

Terminal window
norsk-ctl init --network-mode hybrid --working-directory /tmp/workspace --proxy-user admin --proxy-password testpass1
Proxy user "admin" created, holding the "admin" platform role
Config written to ~/.norsk-ctl/config.yaml

Register the Studio product

Section titled “Register the Studio product”

Register Norsk Studio as a product. This fetches the product’s manifest and its default product template — a ready-to-launch description of a Studio instance.

Terminal window
norsk-ctl product add --image norskvideo/norsk-studio-product:2026-07-21-a3d4d173 --license-file ~/norsk-license.json
name: norsk-studio
spec:
  kind: container
  image: norskvideo/norsk-studio-product:2026-07-21-a3d4d173
port: 34432
containerId: f5b0ead8a12bc8f2d2a2063c3658dd1fd7c039a236364eb1b5ec7bd97374b109
addedAt: 2026-10-04T11:26:01.898Z
running: true
health: unknown
manifest:
  manifestSchemaVersion: 1
  name: norsk-studio
  version: 0.0.1
  minRunnerVersion: 0.1.0
  api:
    basePath: /api
    proxyPaths:
      - /api/*
      - /configure
      - /configure/*
    openapiFragmentPath: /api/openapi.yaml
    mcpPath: /mcp
    healthCheckPath: /healthz
    productMcpPath: /mcp
  ui:
    configScreenUrl: /configure
    sidebarEntries:
      []
    dashboardWidgets:
      []
    productTemplateActions:
      - label: Add examples product template
        configScreenUrl: /configure?template=examples
      - label: Add dev product template
        configScreenUrl: /configure?template=dev
  cli:
    subcommandTree:
      - name: plugin
        description: Scaffold and build Norsk Studio plugins
        flags:
          []
        subcommands:
          - name: create
            description: "Scaffold a new plugin into the working directory's components/"
            flags:
              - name: name
                description: Plugin package name
                required: true
              - name: workingDirectory
                description: Working directory to scaffold into
                required: true
              - name: studioTag
                description: Studio image tag to scaffold against
            request:
              method: POST
              path: /api/plugins/create
          - name: list
            description: List plugins discovered in the working directory
            flags:
              - name: workingDirectory
                description: Working directory to inspect
                required: true
            request:
              method: GET
              path: /api/plugins
          - name: install
            description: Install an npm package as a plugin into the working directory
            flags:
              - name: pkg
                description: npm package to install
                required: true
              - name: workingDirectory
                description: Working directory to install into
                required: true
              - name: studioTag
                description: Studio image tag to install against
            request:
              method: POST
              path: /api/plugins/install
          - name: build
            description: "Bake the working directory's plugins into a studio image"
            flags:
              - name: tag
                description: Tag for the baked image
                required: true
              - name: workingDirectory
                description: Working directory whose plugins to bake
                required: true
              - name: fromImage
                description: Base studio image to bake onto
              - name: fromTag
                description: Base studio image tag
              - name: push
                description: Push the baked image to its registry
                type: boolean
            request:
              method: POST
              path: /api/plugins/build
  targets:
    - docker-compose
  components:
    []
  runtime:
    sharedWorkingDirectory: false
  defaultProductTemplates:
    - name: studio-examples
      url: /api/product-templates/examples
    - name: studio-dev
      url: /api/product-templates/dev
  export:
    include:
      - studio-save-files/**
      - dashboards/**
      - components/**
      - assets/**
      - "*.yml"
      - "*.yaml"
    exclude:
      - "**/node_modules/**"
      - recordings/**
      - logs/**
      - "**/*.mp4"
      - "**/*.ts3"
license:
  mode: byol
  file: ~/.norsk-ctl/licenses/norsk-license.json
warnings:
  - license is marked NON-PRODUCTION — not valid for production deployments

The registered product template is now available to launch from.

Terminal window
norsk-ctl template list
productTemplates:
  - name: studio-examples
    manifest:
      productTemplateSchemaVersion: 1
      productName: norsk-studio
      productVersion: 0.0.1
      target: docker-compose
      generatedAt: 2026-10-04T11:26:01.903Z
      ui:
        runtimeScreenUrl: /
        runtimeScreenLabel: Open Studio
      debug:
        studio: false
      proxy:
        expose:
          - /
          - /static/*
          - /api/*
          - /live/api/*
          - /dashboard/*
          - /ws
          - /ws/*
          - /live/*
          - /components/*
      advanced:
        networkMode:
          {}
        containerUser:
          {}
        publicHost:
          {}
        hostPorts:
          {}
      allocatedPorts:
        - param: GLOBAL_MOQ_PREVIEW_WEBTRANSPORTPORT
          protocol: udp
          preferred: 30000
          label: MoQ preview (WebTransport)
    parameters:
      - name: INSTANCE_NAME
        purpose: Compose project label for this Studio instance
        type: string
        required: true
      - name: GLOBAL_MOQ_PREVIEW_WEBTRANSPORTPORT
        purpose: "MoQ preview (WebTransport) UDP port. Omit to keep it closed; 'auto' allocates a free high port; or give a port number."
        type: string
    createdAt: 2026-10-04T11:26:01.917Z
    source:
      kind: product-default
      productName: norsk-studio
      url: /api/product-templates/examples
  - name: studio-dev
    manifest:
      productTemplateSchemaVersion: 1
      productName: norsk-studio
      productVersion: 0.0.1
      target: docker-compose
      generatedAt: 2026-10-04T11:26:01.919Z
      ui:
        runtimeScreenUrl: /
        runtimeScreenLabel: Open Studio
      debug:
        studio: false
      proxy:
        expose:
          - /
          - /static/*
          - /api/*
          - /live/api/*
          - /dashboard/*
          - /ws
          - /ws/*
          - /live/*
          - /components/*
      requiresWorkingDirectory: true
      advanced:
        networkMode:
          {}
        containerUser:
          {}
        publicHost:
          {}
        hostPorts:
          {}
      allocatedPorts:
        - param: GLOBAL_MOQ_PREVIEW_WEBTRANSPORTPORT
          protocol: udp
          preferred: 30000
          label: MoQ preview (WebTransport)
    parameters:
      - name: INSTANCE_NAME
        purpose: Compose project label for this Studio instance
        type: string
        required: true
      - name: GLOBAL_MOQ_PREVIEW_WEBTRANSPORTPORT
        purpose: "MoQ preview (WebTransport) UDP port. Omit to keep it closed; 'auto' allocates a free high port; or give a port number."
        type: string
    createdAt: 2026-10-04T11:26:01.921Z
    source:
      kind: product-default
      productName: norsk-studio
      url: /api/product-templates/dev

Launch an instance from the product template

Section titled “Launch an instance from the product template”

Launch a Studio instance from the product’s template. --network-mode hybrid keeps media on the host network for low-latency ingest while studio stays proxied on the Docker bridge.

Terminal window
norsk-ctl instance launch-template my-studio --template studio-examples --param INSTANCE_NAME=my-studio --network-mode hybrid
kind: product
id: my-studio
productTemplateName: studio-examples
productName: norsk-studio
productVersion: 0.0.1
params:
  INSTANCE_NAME: my-studio
  NORSK_ALLOCATED_PORTS: "{}"
workingDirectory: /tmp/workspace/norsk-studio/my-studio
launchedAt: 2026-10-04T11:26:02.690Z
productComponents:
  []
runtimeScreen:
  url: /
  href: /instance/my-studio/
  label: Open Studio
  ready: false
debug:
  studio: false
mcp:
  uri: http://my-studio-studio-1:8000/mcp
  ready: false
links:
  - key: visualiser
    label: Open Visualiser
    href: /instance/my-studio/visualiser/
    ready: false
status: stopped
services:
  []
serviceStatus:
  {}
ingestPorts:
  []
networkMode: hybrid
shmSize: 2gb
openFileLimit: 65535

Check instance status

Section titled “Check instance status”
Terminal window
norsk-ctl instance list
infrastructure:
  - name: norsk-product-norsk-studio
    image: norskvideo/norsk-studio-product
    tag: 2026-07-21-a3d4d173
    status: running
    uptime: 14 seconds ago
    role: product
  - name: norsk-proxy-guide-hybrid-cli
    image: nginx
    tag: 1.29.7-alpine
    status: running
    uptime: 17 seconds ago
    role: proxy
  - name: norsk-proxy-guide-hybrid-cli-oauth2
    image: quay.io/oauth2-proxy/oauth2-proxy
    tag: v7.15.1-alpine
    status: running
    uptime: 17 seconds ago
    role: proxy-oauth2
instances:
  - kind: product
    id: my-studio
    productTemplateName: studio-examples
    productName: norsk-studio
    productVersion: 0.0.1
    params:
      INSTANCE_NAME: my-studio
      NORSK_ALLOCATED_PORTS: "{}"
    workingDirectory: /tmp/workspace/norsk-studio/my-studio
    launchedAt: 2026-10-04T11:26:02.690Z
    productComponents:
      []
    runtimeScreen:
      url: /
      href: /instance/my-studio/
      label: Open Studio
      ready: true
    debug:
      studio: false
    mcp:
      uri: http://my-studio-studio-1:8000/mcp
      ready: false
    links:
      - key: visualiser
        label: Open Visualiser
        href: /instance/my-studio/visualiser/
        ready: true
    status: healthy
    services:
      - media
      - studio
    serviceStatus:
      studio: healthy
      media: healthy
    ingestPorts:
      []
    networkMode: hybrid
    shmSize: 2gb
    openFileLimit: 65535
Terminal window
norsk-ctl instance describe my-studio
kind: product
id: my-studio
productTemplateName: studio-examples
productName: norsk-studio
productVersion: 0.0.1
params:
  INSTANCE_NAME: my-studio
  NORSK_ALLOCATED_PORTS: "{}"
workingDirectory: /tmp/workspace/norsk-studio/my-studio
launchedAt: 2026-10-04T11:26:02.690Z
productComponents:
  []
runtimeScreen:
  url: /
  href: /instance/my-studio/
  label: Open Studio
  ready: true
debug:
  studio: false
mcp:
  uri: http://my-studio-studio-1:8000/mcp
  ready: false
links:
  - key: visualiser
    label: Open Visualiser
    href: /instance/my-studio/visualiser/
    ready: true
status: healthy
services:
  - media
  - studio
serviceStatus:
  studio: healthy
  media: healthy
ingestPorts:
  []
networkMode: hybrid
shmSize: 2gb
openFileLimit: 65535

Sign in to the proxy

Section titled “Sign in to the proxy”

In hybrid mode the studio is reached through the proxy, just like Docker mode — sign in first.

The proxy sign-in form

Sign in with the proxy user you configured during init.

Open Norsk Studio

Section titled “Open Norsk Studio”

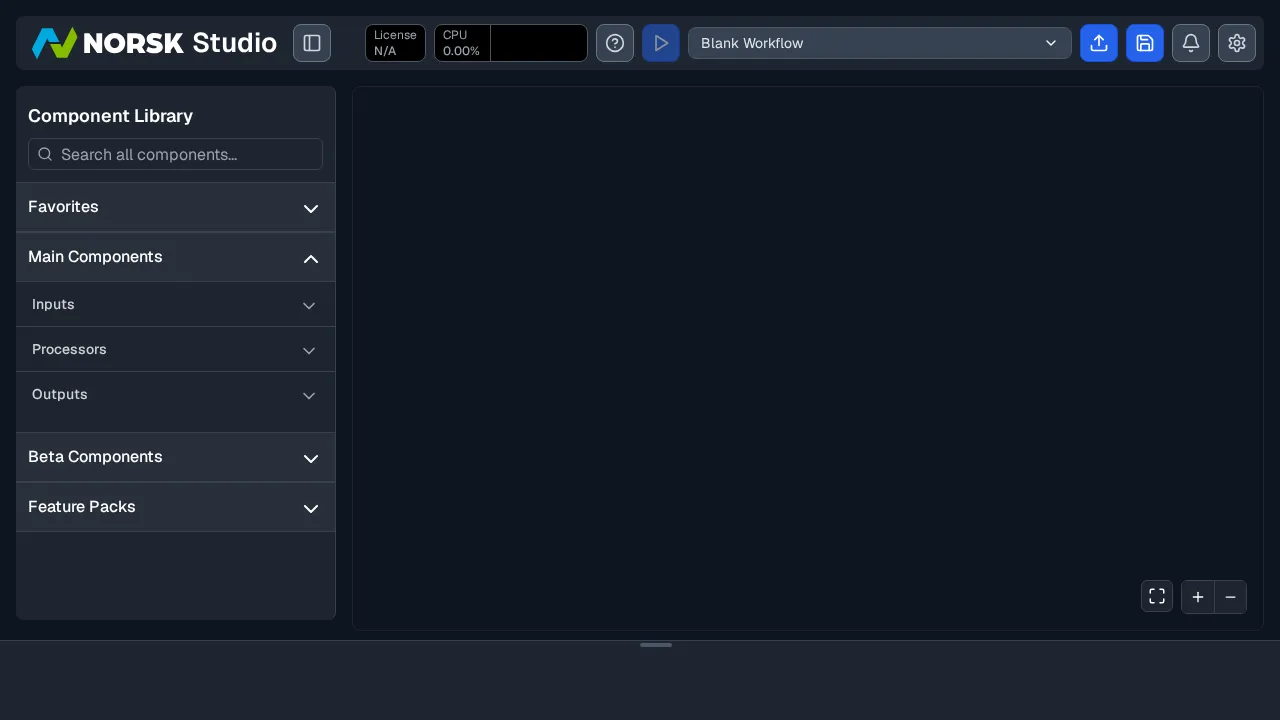

Once signed in, open the Studio UI through the proxy.

Norsk Studio

Clean up

Section titled “Clean up”

Delete the instance to stop its containers and free resources.

Terminal window
norsk-ctl instance delete my-studio
Instance my-studio terminated

The proxy is needed whenever instances are running — with no instances left, it can be stopped to free the port.

Terminal window
norsk-ctl proxy stop

The daemon can be stopped and restarted at any time — running instances and the proxy are unaffected.

Terminal window
norsk-ctl shutdown --daemon-only
Daemon stopped (pid 3343413)
