Vertical / social

A single-commentator show bound for a vertical social feed — a 9:16 program pushed to a CDN over RTMP, the console laid out portrait to match the show:

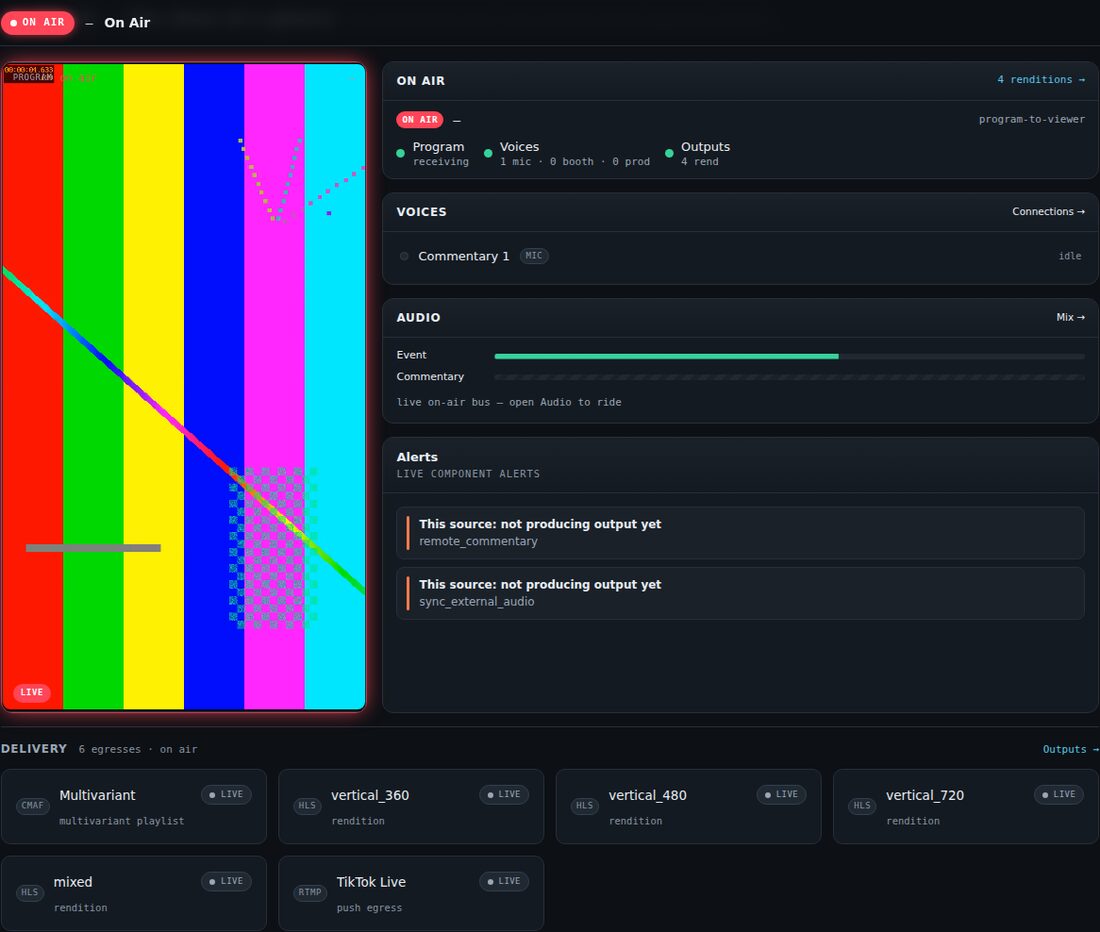

01 A portrait cockpit

The console reads the running show and stands up portrait: the program hero takes a true 9:16 shape, and the delivery band tiles the vertical ladder alongside the RTMP push — which reads ‘awaiting stream key’ until the operator sets its destination.

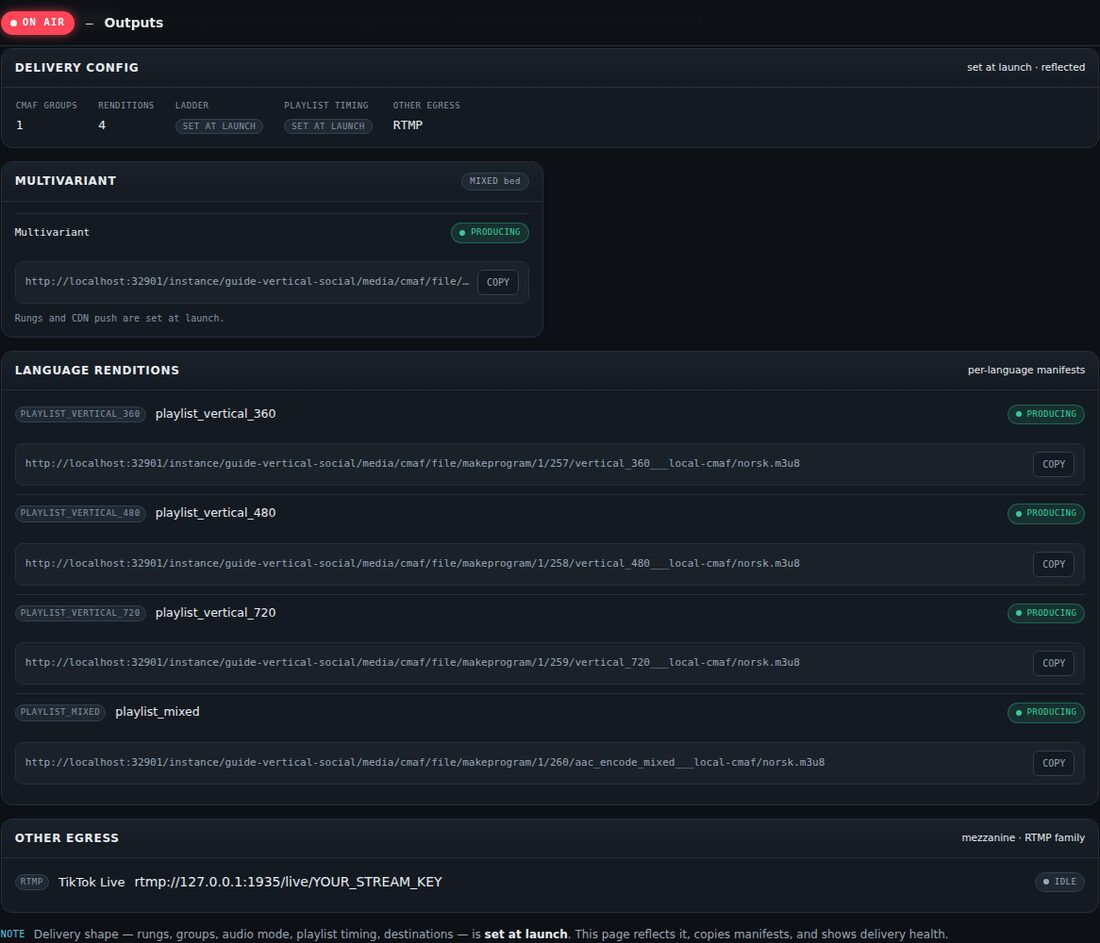

02 The vertical delivery

One CMAF group carrying the portrait renditions — 360x640, 480x854 and 720x1280 — each with a copyable manifest, and the RTMP push to the social feed listed alongside.

Uses: Output shapes, Remote talent
